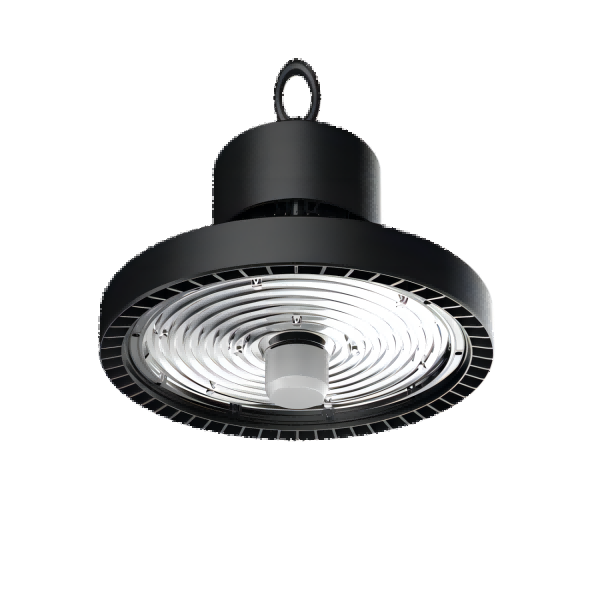

Intelligence High bay light fixture with smart sensor available
* Efficiency up to 180lm/w for big energy saving
* Patented design: sensor can be plugged within 3 seconds for quick plug and play
* With smart sensor optional for secondary energy saving
* UGR<28 reduces stress, tiredness
* Compact design to save shipping and storage space
* IP65&IK08: be able to work in humid and severe environment
* Reliable quality and long life time to reduce maintenance cost
* Application for warehouse, supermarket, stadium, railway station...
Specification
|
Model
|
NS-GK 03122-100 | NS-GK 03122-100 | NS-GK 03122-100 | NS-GK 03122-100 |
|
Input voltage
|
220-240/120-277Vac
50/60 Hz
|
220-240/120-277Vac
50/60 Hz
|
220-240/120-277Vac
50/60 Hz
|
220-240/120-277Vac
50/60 Hz
|
|
Power
|
100W | 150W | 200W | 240W |
|
Chips
|
2835/3035 | |||
|
Efficacy
|
130/150/180(LM/W) | |||
|
Luminous Flux
|
13000/15000/18000(LM) | 19500/22500/27000(LM) | 26000/30000/36000(LM) | 31200/36000/43200(LM) |
|
CRI
|
80+ | |||
|
LM80
|
>36,000 hrs | |||
|
Color temperature
|
5000K | |||
|
Driver brand
|
JR/Sosen/Moso/Lifud | |||
|
Beam angle
|
90°
|
|||
|
Working temperature
|
-30-50℃
|
|||
|
IP rating
|
IP65
|
|||
|
Lifetime
|
60000h
|
|||
|
Warranty
|
5 years
|
|||
|
Optional
|
Sensor/0-10V/PWM/12Vdc auxiliary power supply
|
|||
